Product Overview
eBite3S Blue Light
(Lens-Illuminated Loupe Light with UV)
eBite3S Blue Light is a cordless, detachable loupe light equipped with a UV illumination function, specially designed to enhance the visibility of transparent resin used in clear aligner treatments such as Invisalign® clear aligners.
It can be easily attached to the practitioner’s glasses or loupes, enabling independent use without the need for an assistant.
By applying a UV wavelength, it significantly improves the visibility of transparent resin that is difficult to detect under standard lighting conditions.
UV-LED Illumination
Provides ultraviolet light optimized for clear identification of transparent resin.
Cordless, Rechargeable Design
Replaceable battery allows up to 5 hours of continuous use.
Reflector-Based Design
Ensures uniform light distribution for improved accuracy during procedures.
Adjustable Angle
Tilt angle adjustable up to 90° downward for optimal visibility.
Button-Controlled Brightness
Three-step brightness adjustment for various clinical environments.
Lightweight Design
Weighs approximately 41g, minimizing fatigue during extended wear.
Applications
Identification of transparent resin during clear aligner procedures
Compatible attachment for loupes, glasses, and protective goggles
Product Components
• eBite3S Blue Light main unit
• Charger
• Micro-USB charging cable
• Lens filter • Glasses strap
• Multilingual user manual
• EVA case
Product Specifications
Item | Details |
Wavelength Range | 375–410nm |
Luminous Intensity | Model-specific (varies by configuration) |
Brightness Control | 3-step (button control) |
Angle Adjustment | Up to 90° downward |
Continuous | Up to 5 hours |
Charging Method | Micro-USB |
Charging Time | Approx. 2 hours |
Battery | Rechargeable lithium-polymer |
Weight | Approx.41g |
Dimensions | 41(W) x 70(L) x 54(H)mm |
| Included Components | Main unit, Charger, Lens filter, Glasses strap, EVA case |
How to Use
| Attach | Secure the device to your loupe or glasses using the clip. |
| Adjust | Set the illumination angle to your preferred position. |
| Power & Brightness | Press the power button to turn it on, then select the desired brightness level. |
| After Use | Turn off the power and connect the device to the charger. |
Cleaning & Maintenance

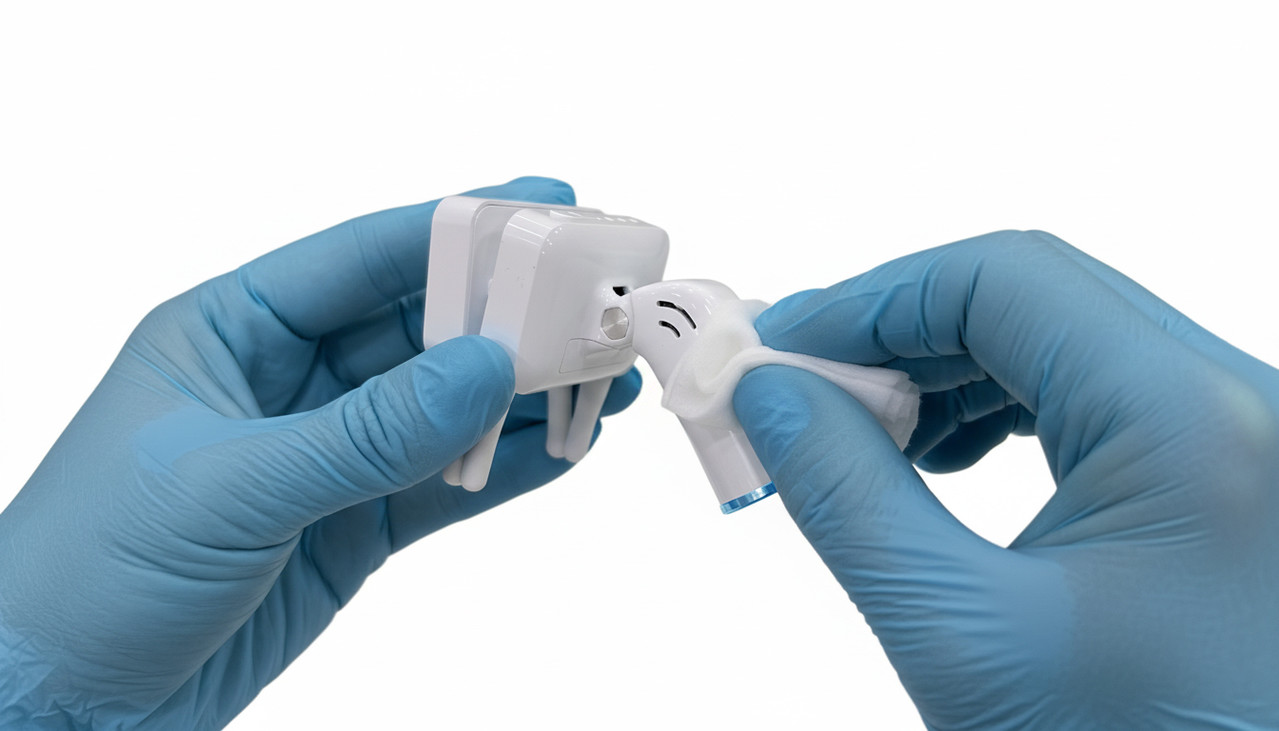

Main unit: Wipe the surface with an alcohol-based disinfectant.
Strap: Detach and wash separately.

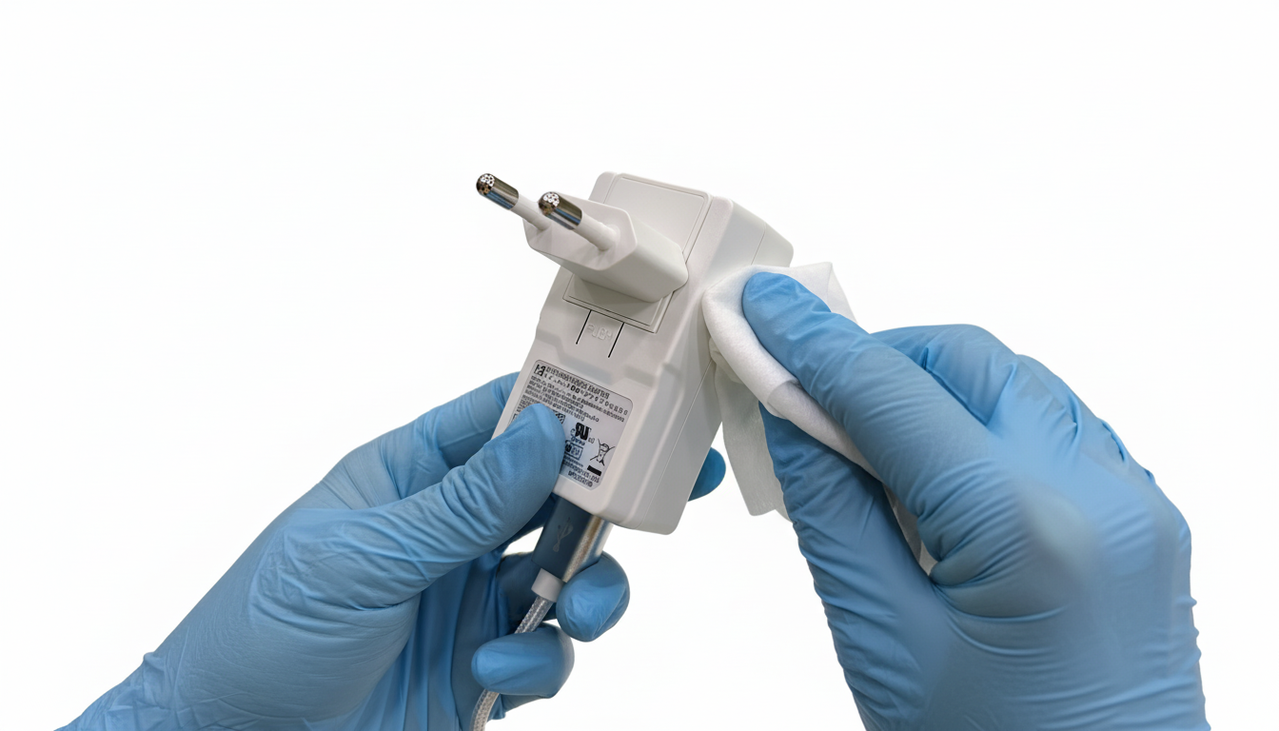

Charging cradle: Clean with a dry cloth.
Key Benefits
Easily identify transparent resin during clear aligner procedures
Compatible with loupes and glasses for universal use
Lightweight, cordless design for comfortable long-term wear
Adjustable brightness and angle for optimal visibility
Certifications & Compliance
CE MDR Certified
ISO 13485 Quality Management Certified
Clinically verified and used in domestic and international dental practices
